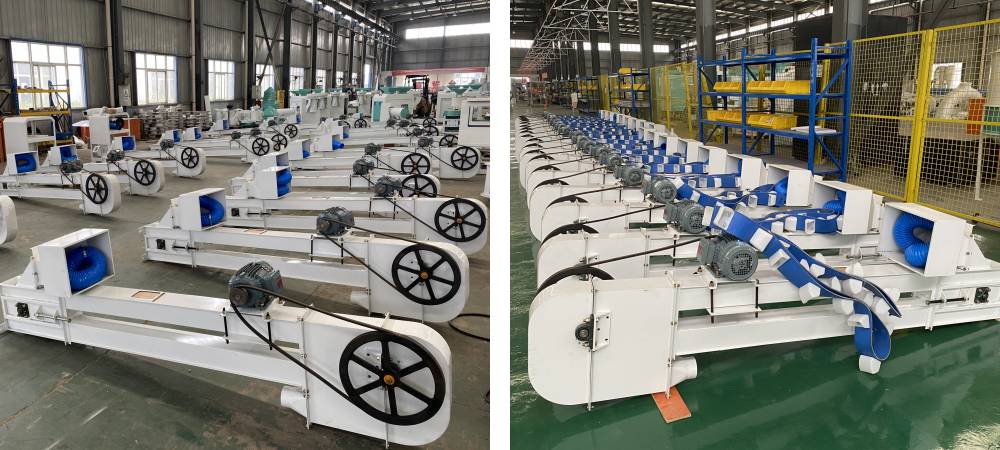

Bucket Elevator

Product properties
  • Summary:1. High quality steel plate;
    2. The Bucket Elevator uses advanced equipment to bent and weld;
    3. No dust leakage thanks to good sealing performance;
    4. Good wear resistance thanks to high molecular polyethylene bucket;
    5. Uses high-intensity bucket flat belt, low elongation;
    6. High-strength bolted joint.

Bucket Elevator Features:
1. High quality steel plate;
2. The Bucket Elevator uses advanced equipment to bent and weld;
3. No dust leakage thanks to good sealing performance;
4. Good wear resistance thanks to high molecular polyethylene bucket;
5. Uses high-intensity bucket flat belt, low elongation;
6. High-strength bolted joint.



Functional Description of the Bucket Elevator:
The bucket elevator is ideal for use as a distributing elevator.
Floury products as well as bulk materials such as grain and flours can be handled in vertical or upward inclined more than 70 degree direction.
The bucket elevator features compact structure, stable operation, low noise, high efficiency, and convenient operation and maintenance.



Technical Parameter of the Bucket Elevator:
Model
TDTG20/09
TDTG20/11
TDTG20/13
Item
(t/h)
2
4
6
Delivery value
main wheel speed(m/s)
2.5
2.7
1.26
main wheel diameter(mm)
190
190
190
winnowing pan space(mm)
176
182
182
maximum elevation height
power
0.55
0.75KW
1.1KW
size(l×w×h)mm
910×200×(765+X)
1100×322×(1240+X)
1220×510×(1550+X)
(Note: X means nominal height)
mounting hole size
142×142×Φ13
550×170×Φ21
570×Φ18
